🕷️ Modular Botnet Simulation and Analysis

This project simulates a custom botnet in a secure and fully isolated VirtualBox environment. It includes:

• A Flask-based Command and Control (C2) dashboard
• Python-based malware agents (bots) for Linux and Windows
• A target server to demonstrate DDoS and scanning modules
• Basic Wireshark-based traffic analysis

⚠️ This project is strictly for educational and research purposes. All simulations were conducted in a closed, offline environment.

---

🎯 Project Objectives

• Simulate botnet behavior using modular bots
• Implement C2 dashboard for remote task control
• Explore malware modules (keylogger, scanner, DDoS, etc)
• Monitor traffic using Wireshark
• Ensure complete ethical containment in a virtual lab

---

🛠 Tech Stack

Component	Technology
Bots	Python
C2 Server	Flask
Target Server	Ubuntu + Flask
Monitoring	Wireshark
VMs	VirtualBox/VMWare/VPN

---

📁 Project Structure

modular-botnet-simulation/
├── bot/                # Linux and Windows bot clients
│   ├── bot.py
│   ├── bot.exe         # Windows binary file for bot
│   ├── bot             # Linux binary file for bot
│   ├── wordlist.txt    # Test wordlist for bruteforce attack on Test Website
│   ├── <all_modules>.py
│   └── requirements.txt
├── c2_server/           # Flask-based C2 interface
├── dos_target/          # Flask server to simulate DDoS attack
├── analysis/            # Wireshark logs, screenshots
├── docs/                # Scope, Report, Presentation (PDF)
├── requirements.txt
└── README.md

---

🔍 Implemented Modules

• Keylogger: Captures keystrokes
• DoS: HTTP flood on target server
• net_scan: Scans the network in which the bot is connected and sends the hosts that are up. (Not accurate)
• port_scan: Scans common ports on hosts that are up
• brute_force: Can perform bruteforce operations on SSH/FTP/HTTP-LOGIN
• stealer: Steals known secrets/credentials from Linux-(Fails to steal browser creds), on Windows only steals browser creds (only for chromium based browsers)
• spyware: Gets clipboard as well as captures screenshots

---

🚀 How to Run

1. Set Up the Virtual Lab

• Configure Virtual Environment using Virtualization or a VPN
• Create VMs for:
  • Kali Linux (C2)
  • Debian/Ubuntu (Linux bots)
  • Windows VM (optional Windows bot)
  • Ubuntu server (target)

Make sure all virtual machines are on the same local area network (LAN).

2. On kali Linux (C2)

git clone https://github.com/buggymaytricks/ECSIP-botnet-sim-and-analysis.git
cd ECSIP-botnet-sim-and-analysis
cd c2_server
pip3 install -r requirements.txt
python3 server.py

Now you can send the binaries on the desired VMs

3. On Windows Bot

Run the bot.exe file
#It will ask for the servers IP enter the IP and hit enter

4. On Linux Bot

./bot
#It will ask for the servers IP enter the IP and hit enter

5. Use C2 Dashboard

• Access dashboard via browser (http://<C2-IP>:5000)
• View connected bots, run modules and monitor responses

6. Analyze Traffic (Wireshark) IN PROGRESS

• Filter packets by IP or protocol:
  • http.request
  • ip.addr == <bot-ip>
• Observe command traffic and DDoS flood patterns

---

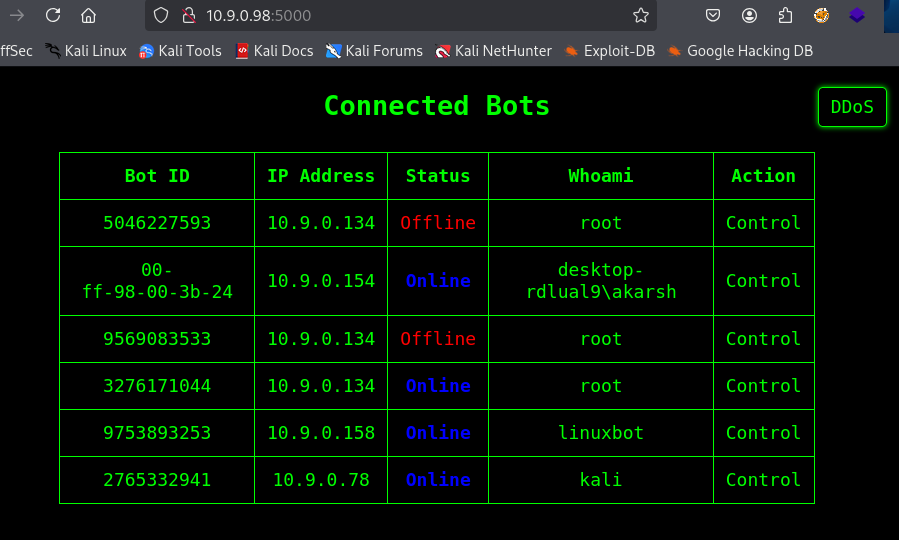

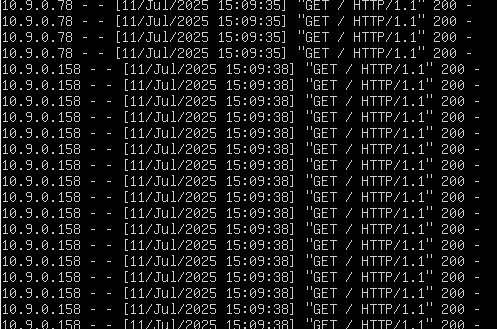

📸 Screenshots

---

⚠️ Known Limitations

• Communication not encrypted (no HTTPS)
• Static polling interval (no randomized beaconing)
• No real propagation

---

🧠 Future Work (Optional Improvements)

• Implement AES encryption for bot-C2 traffic
• Build a graphical dashboard with real-time bot telemetry
• Add ML-based traffic anomaly detection
• Simulate DNS or covert-channel based communication

---

📜 License / Ethics

This simulation is intended only for ethical learning and cybersecurity education. All components were run on internal, offline VMs. Do not deploy in real or online environments.
